1-to-2 electrode lead wire with a DC 2.35mm device connector, dual 2.0mm electrode pins and three adjustable sliders for compatible TENS, EMS and electrical stimulation equipment.

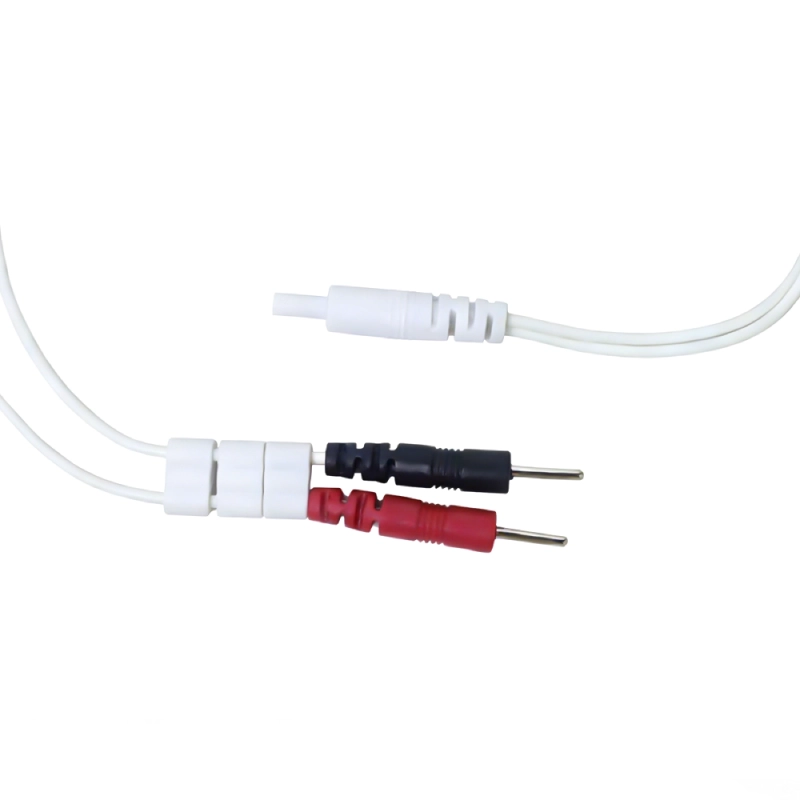

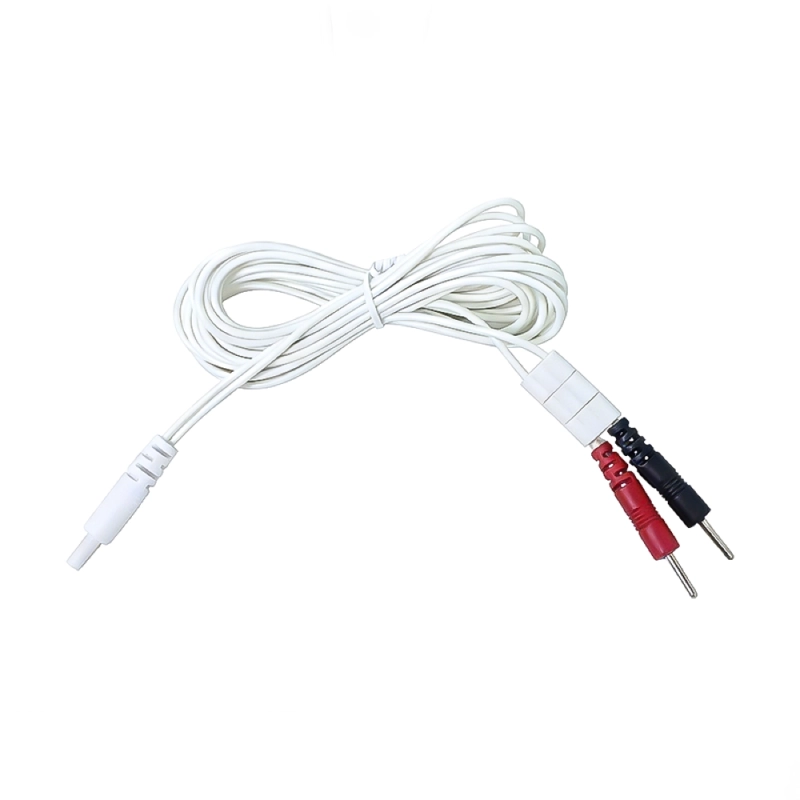

The Heymed Medical DC 2.35mm to Dual 2.0mm Electrode Pin Lead Wire is a reusable 1-to-2 cable assembly developed for compatible TENS, EMS and electrical stimulation equipment. A DC 2.35mm male connector interfaces with the device, while two separate 2.0mm electrode pins connect to compatible electrode accessories.

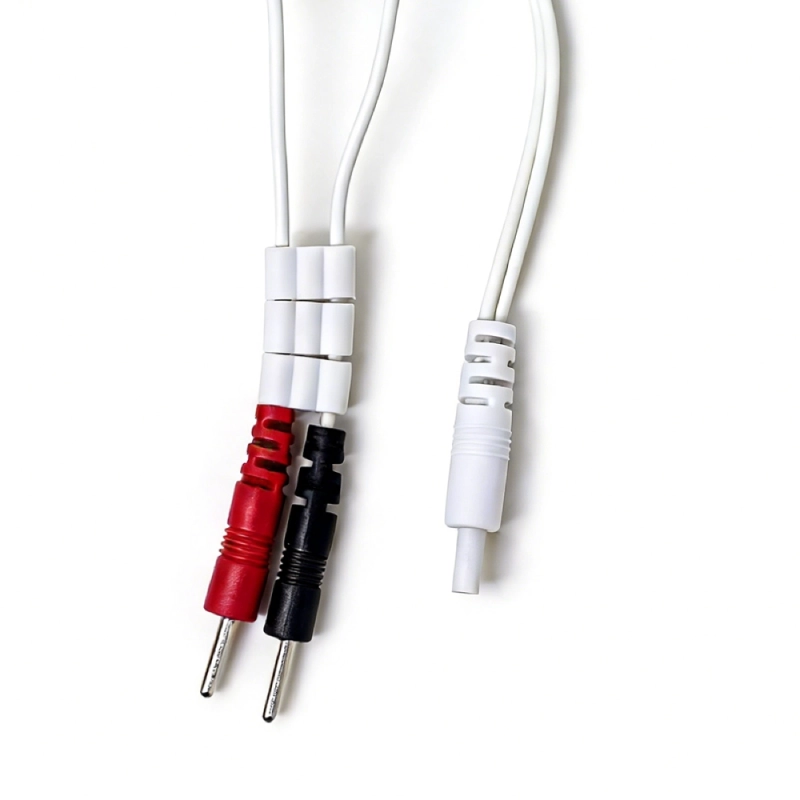

Three adjustable sliders are integrated into the cable structure to help organize the main cable and branch leads. The sliders can be repositioned according to the equipment setup, helping maintain a cleaner cable arrangement during connection and use.
For OEM and ODM projects, the connector configuration, cable length, branch dimensions, slider arrangement, cable color, labeling and packaging can be developed according to the customer’s device design. Customers are recommended to provide the equipment model, connector dimensions, polarity or pin definition, drawings or reference samples so that electrical and mechanical compatibility can be confirmed before mass production.
TENS / EMS Electrode Cable Integration

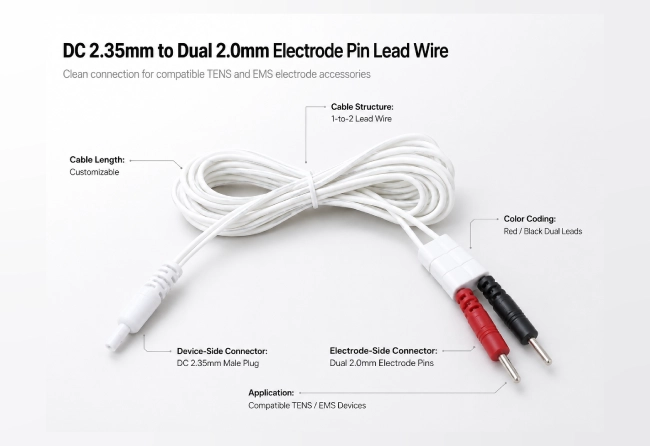

The DC 2.35mm to dual 2.0mm electrode lead wire provides a compact 1-to-2 connection between compatible electrical stimulation equipment and electrode accessories. The three-slider structure allows the main cable and branch leads to be positioned according to the finished-device configuration.
Device-side connectors, electrode interfaces, cable length, branch dimensions, slider quantity or position, cable color and overmold structure can be developed according to project requirements. Alternative connector combinations can also be evaluated when the customer provides the device interface specification or an approved reference sample.
Heymed Medical supports drawing review, connector and polarity confirmation, prototype development, cable assembly inspection and compatibility verification. Final connector fit, polarity and electrical requirements should be confirmed together with the customer’s finished device before volume production.
Medical-grade auricular stimulation cable specifications for healthcare and neuromodulation therapy applications.

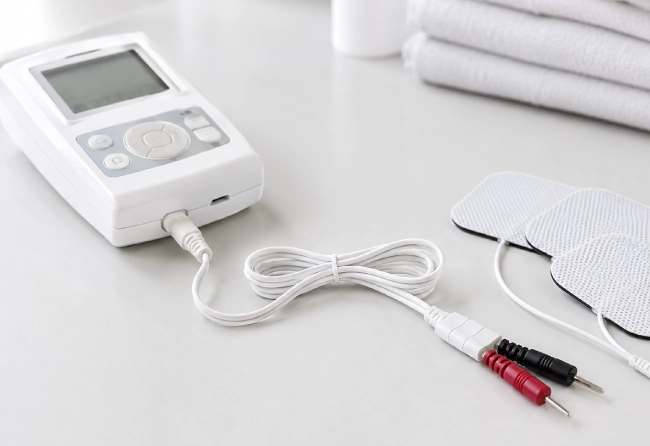

This 1-to-2 electrode lead wire provides a compact connection between compatible TENS, EMS and electrical stimulation equipment and electrode accessories using 2.0mm pin interfaces. A DC 2.35mm male plug connects to the device, while two independent 2.0mm electrode pins provide separate output connections for compatible electrodes or accessories.

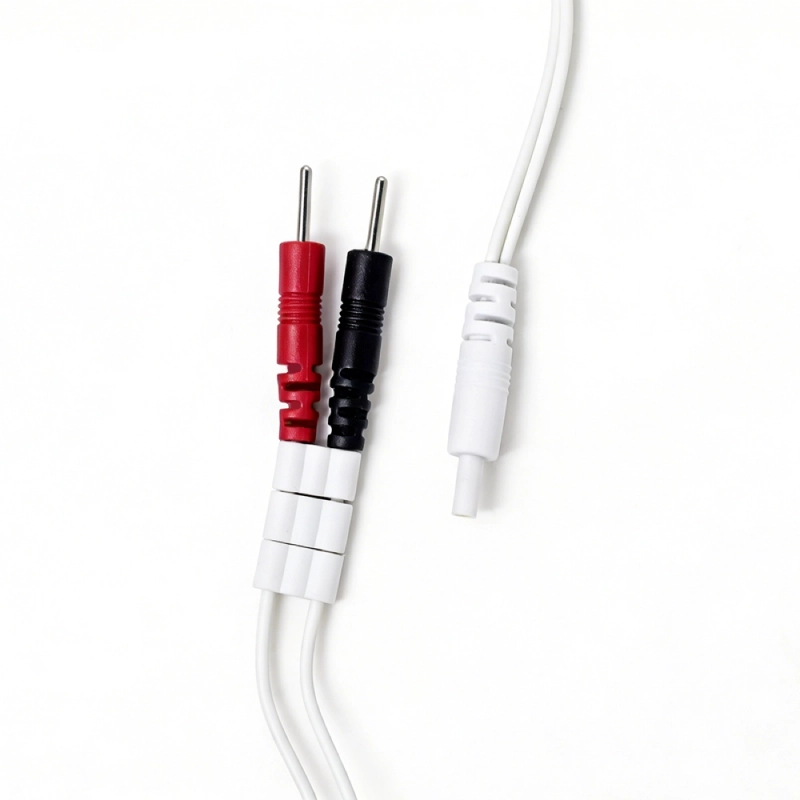

The cable is designed not only around electrical connectivity, but also around cable organization during equipment integration. Three movable sliders are positioned along the main cable and branch leads, allowing the cable layout to be adjusted according to the device configuration, electrode position and required branch separation.
The 1-to-2 cable architecture allows one device-side connection to be divided into two independent electrode leads. This structure is suitable for compatible equipment that requires two electrode connection points while maintaining a compact device-side interface.

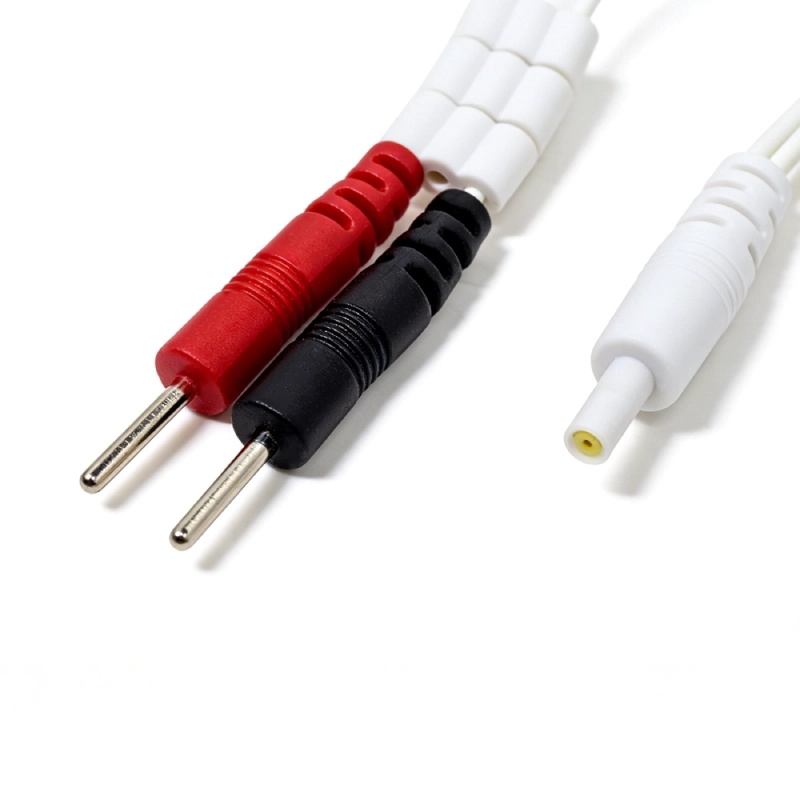

The red and black electrode-side connectors provide clear visual identification between the two branches. Each branch terminates in a 2.0mm pin for connection with compatible electrode pads, conductive accessories or other components using a matching female interface.
Because DC connector dimensions and electrical definitions may vary between equipment manufacturers, connector fit, polarity and electrical configuration should be confirmed against the target device before volume production.
In multi-electrode cable assemblies, cable management is an important part of the overall connection design. If the two branch leads are completely unrestricted, they may separate too early, cross over each other or create unnecessary loose cable around the equipment.
The three adjustable sliders allow the main cable and branch sections to be positioned more deliberately. Their location can be changed according to the required separation between electrodes, helping maintain a cleaner cable arrangement while still allowing sufficient movement between the two output leads.
For OEM projects, slider quantity, slider position, branch length and the distance between the cable split and electrode connectors can also be developed around the customer's finished-device layout.
Device connector: DC 2.35mm dimensions, plug structure, mating depth and device-side fit.
Electrical definition: polarity, contact assignment and electrical connection requirements.
Electrode interface: 2.0mm pin dimensions and compatibility with the intended electrode accessory.
Cable layout: total cable length, Y-branch dimensions, slider quantity and position according to the finished-device design.
For device manufacturers, an electrode lead wire often needs to match more than a connector size. The complete assembly may need to follow a specific device housing, electrode spacing, cable routing method, polarity definition and user connection sequence.
Heymed Medical can develop custom TENS lead wires, EMS lead wires and electrode cable assemblies from customer drawings, connector specifications, reference samples or finished-device interface information. Engineering review can cover connector matching, cable branching, electrode interface selection, wire sequence, overmold structure and prototype verification before volume manufacturing.
For projects requiring different connector architectures or additional output channels, alternative TENS & EMS Cables & Electrode Accessories can also be evaluated according to the target equipment.
Different stimulation and electrode-based devices may require different connector types, lead counts and electrode interfaces. Heymed Medical supports both simple 1-to-2 electrode lead wires and customized multi-lead cable assemblies for OEM and ODM equipment development.
Shielded 6-Pin LEMO-Compatible to 5-Lead 3.5mm Female Snap Physiotherapy Cable →
A shielded multi-lead cable option for compatible physiotherapy, TENS and EMS equipment requiring a locking push-pull device connector and five 3.5mm female electrode outputs.
We provide OEM and ODM medical cable assembly services for neuromodulation therapy device manufacturers and healthcare brands worldwide.
Four-lead electrode cable with a 2.5mm TRRS male plug, four 4.0mm gold-plated female snaps and flexible PVC insulation for compatible TENS, EMS and physiotherapy equipment | OEM/ODM customization available
Four-lead electrode cable with a Micro USB male device connector, 4.0mm female snaps and molded strain relief for compatible TENS, EMS and physiotherapy equipment | OEM/ODM customization available
White electrode lead with a DIN 5-pin male connector, two 3.5mm magnetic female snaps and two 2.0mm electrode pins for compatible TENS, EMS and physiotherapy equipment | OEM/ODM customization available
White 1-to-2 electrode lead with a 600mm main cable, two 300mm branches, pink/white silicone ear hook and free-moving non-glued assembly for compatible stimulation and rehabilitation equipment | OEM/ODM customization available
Reusable self-adhesive electrode pads with a 3.5mm snap interface for compatible TENS, EMS and electrical stimulation equipment | OEM/ODM customization available
Reusable dual ear clip electrode lead wire with a 90-degree 3.5mm device connector for compatible stimulation and electrode-based equipment | OEM/ODM customization available
Shielded 5-lead electrode cable with a 6-pin push-pull device connector and five 3.5mm female snap interfaces for compatible TENS, EMS and physiotherapy equipment.
Self-adhesive non-woven electrode pads with snap connectors for compatible TENS, EMS, electrotherapy, and electronic massager systems.
Reusable double-sided conductive rubber ear clip electrode with a 2.0mm female pin interface for compatible CES, TENS, microcurrent and auricular stimulation equipment | OEM/ODM customization available
Self-adhesive non-woven electrode pads with a 2.0mm female pin interface for compatible NMES and swallowing rehabilitation equipment | OEM/ODM customization available
Resolve your concerns in advance — stress-free communication, efficient coordination
A DC 2.35mm to dual 2.0mm electrode lead wire is a 1-to-2 cable assembly designed to connect a compatible device using a DC 2.35mm output to two electrode accessories using 2.0mm pin interfaces.
It is designed for compatible TENS, EMS and other electrical stimulation equipment. Final compatibility depends on the device connector, polarity and electrical requirements.
The standard configuration uses one DC 2.35mm male connector on the device side and two 2.0mm electrode pin connectors on the electrode side
The three sliders help organize and position the main cable and branch leads according to the finished-device setup.
Yes. Cable length, branch structure and connector configuration can be developed according to the customer’s device and project requirements.
Yes. Customers can provide device drawings, connector specifications, pin definitions, existing cable samples or reference photos for engineering evaluation and prototype development.
Customers are recommended to provide the device model, connector type, polarity or pin definition, required cable length, electrode interface, reference drawing or sample and expected order quantity.
