Name: USB-C 90° to 3-Lead 4.0mm ECG Female Snap Electrode Cable
Brand: Donggguan Heymed Medical Co.,Ltd.
Availability: InStock

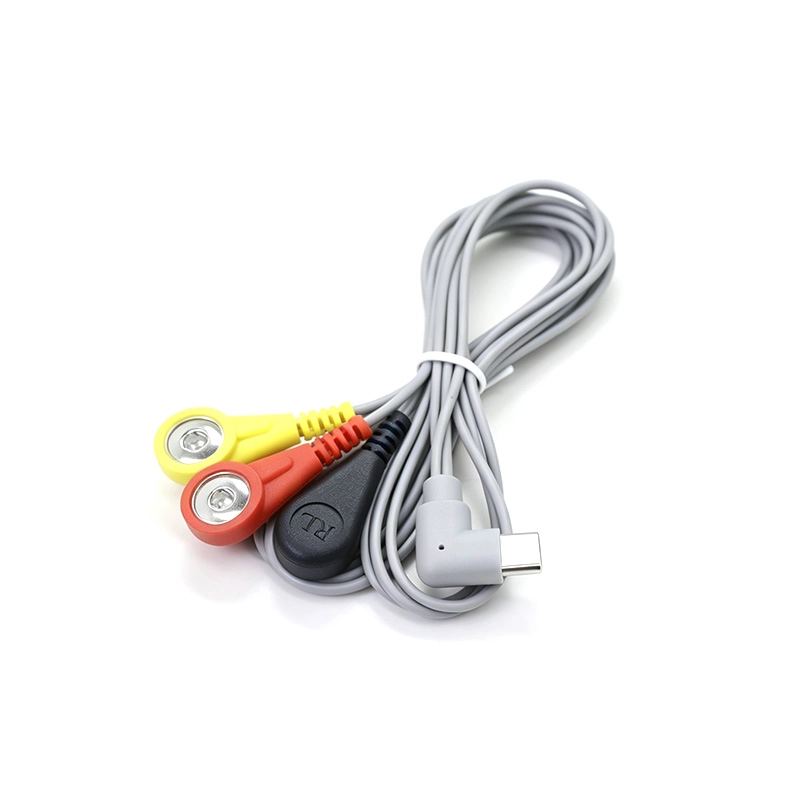

USB-C 90° Right Angle to 3-Lead 4.0mm ECG Female Snap Electrode Cable

1m Grey 3-Lead Electrode Cable with Red, Yellow and Black 4.0mm Female Snap Connectors | Custom USB-C Pinout & OEM/ODM Development

The Heymed Medical USB-C 90° to 3-Lead 4.0mm ECG Female Snap Electrode Cable is designed for compatible ECG, patient-monitoring and biosignal equipment requiring a compact USB Type-C device interface and three electrode connections.

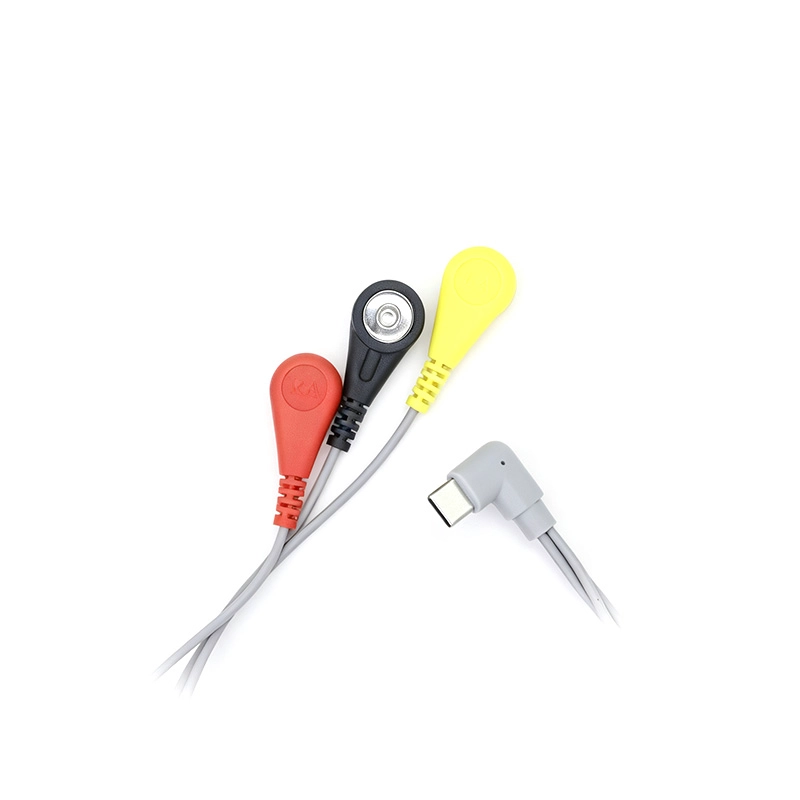

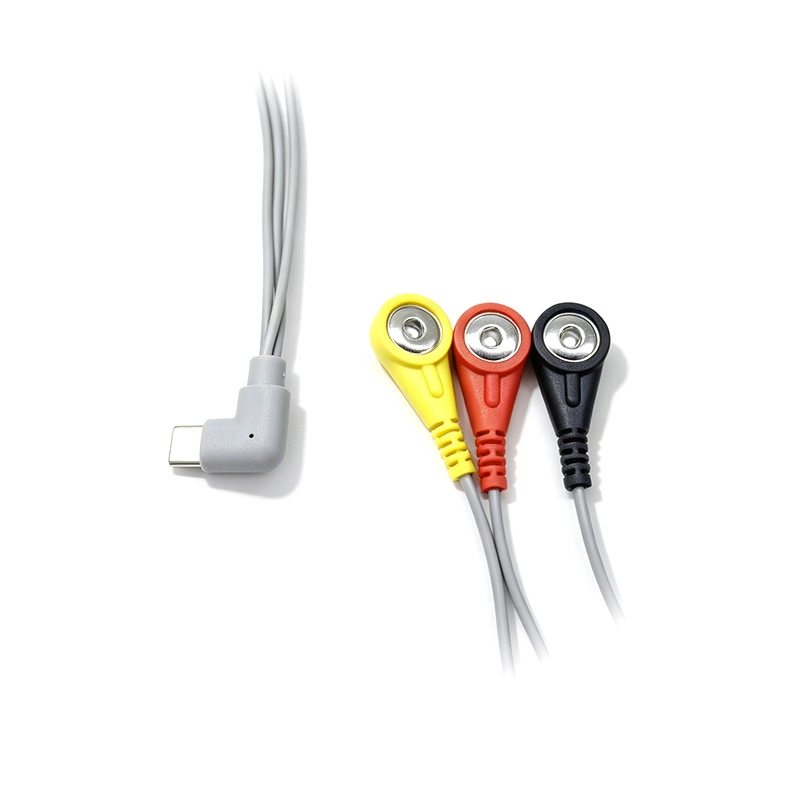

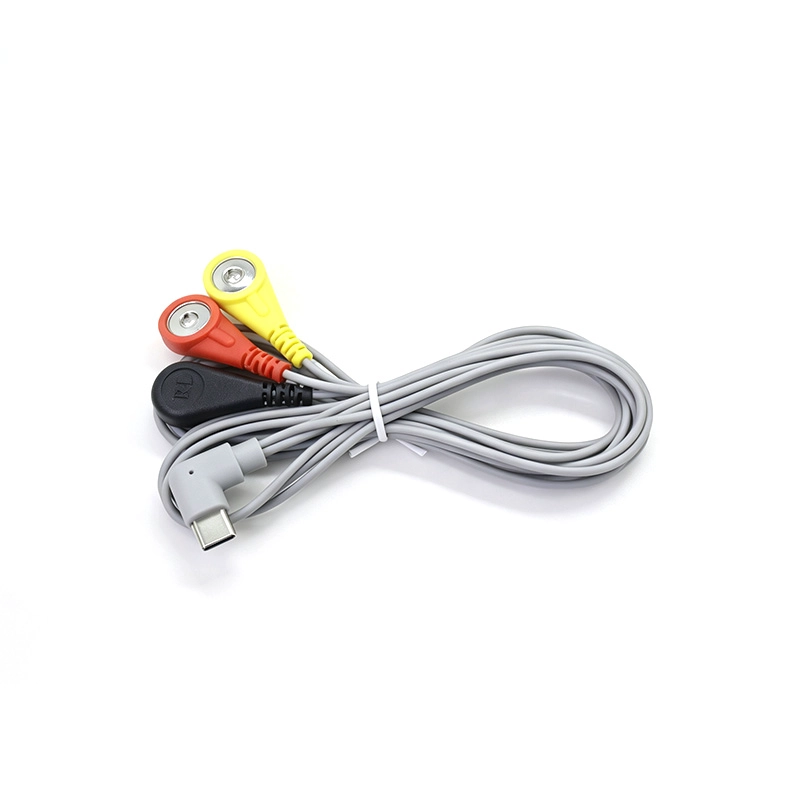

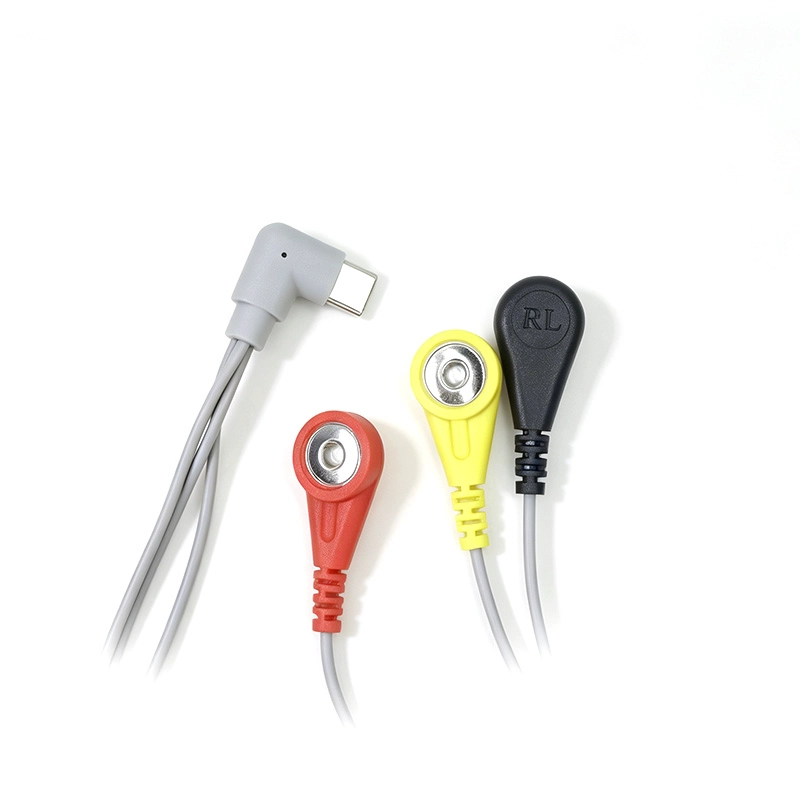

The cable features a 90-degree USB-C male connector, three red, yellow and black lead wires, and 4.0mm female snap connectors, with a standard 1000mm grey main cable.

Heymed Medical supports customization of the USB-C pinout, cable length, lead configuration, electrode connector, cable material, overmold structure, labeling and packaging for OEM/ODM medical device projects.

Custom USB-C 3-Lead ECG Electrode Cable for Medical Device Integration

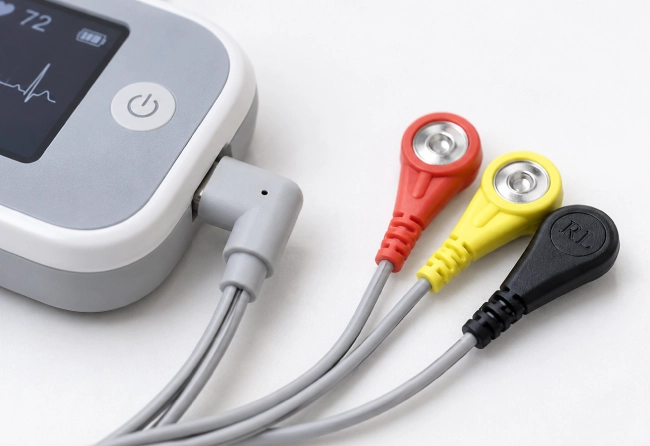

The USB-C 90° 3-Lead ECG Electrode Cable provides a compact connection between compatible ECG, patient-monitoring and biosignal equipment and three 4.0mm snap electrode interfaces. The right-angle Type-C structure is suitable for devices where connector orientation, enclosure space and cable routing are important.

For OEM/ODM projects, USB-C pinout, cable length, lead configuration, 4.0mm snap connectors, cable material, lead colors and overmold structure can be customized according to the finished-device design. The cable can also be developed as part of a broader Custom Medical Cable Assembly or integrated into portable and Wearable Medical Devices.

Heymed Medical supports device interface review, pinout confirmation, cable structure design, prototype development, electrical testing and volume manufacturing. Customers can provide device drawings, PCB definitions, existing cable samples or interface information for engineering evaluation before production.

USB-C 3-Lead ECG Cable for Compact Medical Device Integration

This USB-C 90° right-angle ECG cable is designed for medical and biosignal devices where connector space, cable routing, and multi-electrode connection need to be considered together. Compared with a straight Type-C plug, the right-angle connector allows the cable to route closer to the device housing, helping reduce space around the interface and support compact device designs.

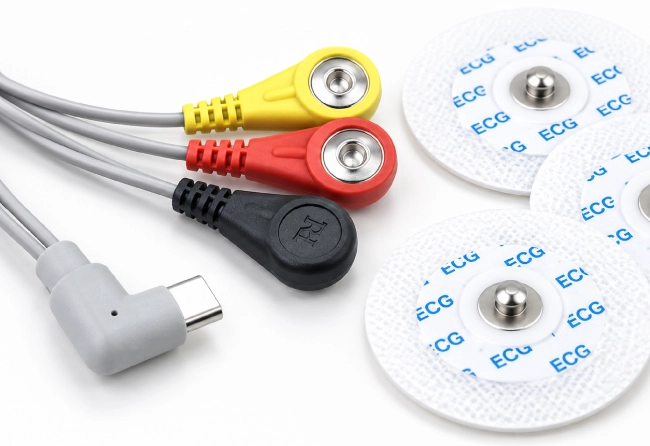

Three individual leads terminate in 4.0mm female snap connectors for connection with compatible snap-type electrodes. Red, yellow, and black lead identification helps simplify channel recognition during device integration, testing, and assembly.

Custom Medical Cable Manufacturing

We provide OEM and ODM medical cable assembly services for neuromodulation therapy device manufacturers and healthcare brands worldwide.

Multi-Lead EEG / ECG / EMG Monitoring Electrode Cable

Reusable shielded biosignal lead wire with Dupont, 4.0mm female snap and ear-clip electrode interfaces for compatible EEG, ECG, EMG and sleep monitoring equipment

4-Pin LEMO-Compatible to 3-Lead 4.0mm ECG Female Snap Cable

Shielded 3-lead ECG cable with a 4-pin push-pull device connector and three 4.0mm female snap interfaces for compatible ECG and patient-monitoring equipment | Custom pinout & OEM/ODM available

5-Pin Pogo Pin Nurse Call Push Button Cable

Self-reset nurse call push button cable with a 5-pin spring-loaded contact interface for compatible hospital beds, nurse stations and healthcare communication systems | OEM/ODM customization available

6-Pin LEMO-Compatible to 5-Lead 3.5mm Female Snap Electrode Cable

Shielded 5-lead electrode cable with a 6-pin push-pull device connector and five 3.5mm female snap interfaces for compatible TENS, EMS and physiotherapy equipment.

5-Pin Spring-Loaded Contact to 5-Lead ECG/EMG Electrode Cable

Compact 5-lead electrode cable with a 5-pin spring-loaded device interface for compatible ECG, EMG and biosignal equipment | Custom pinout and OEM/ODM available

10-Pin Magnetic Spring-Loaded Contact to 10-Lead 4.0mm ECG Female Snap Cable

10-lead ECG electrode cable with a magnetic spring-loaded device interface and ten 4.0mm female snap connectors | Custom pinout, cable length and OEM/ODM available

4.0mm 3-Prong Female ECG Snap Button Connector

Nickel-plated brass 4.0mm female snap connector for ECG electrode lead wires, patient-monitoring accessories and custom medical cable assemblies.

Type-C Male to 10.0mm Gold-Plated EEG/ECG Cup Electrode Cable

Reusable gold-plated cup electrode lead wire for EEG, ECG, EMG and PSG biosignal acquisition | Custom Type-C pinout, lead length and OEM/ODM available

1. What is a USB-C 90° 3-lead ECG electrode cable?

A USB-C 90° 3-lead ECG electrode cable is a cable assembly designed to connect a compatible ECG, patient-monitoring or biosignal device using a USB Type-C interface to three electrode connections.

2. What electrode connectors are used on this cable?

The standard configuration uses three 4.0mm female snap connectors with red, yellow and black lead identification.

3. Can the USB-C pin assignment be customized?

Yes. The USB-C pinout can be developed according to the customer's device circuit, PCB interface, signal definition and electrical requirements.

4. Does the USB-C connector mean the cable uses standard USB communication?

Not necessarily. USB Type-C describes the physical connector used on the device side. The actual pin assignment and signal definition depend on the finished-device design.

5. Can the cable length, lead colors and materials be customized?

Yes. Main cable length, branch lead length, cable material, lead colors, markings, connector structure and overmold can be customized for OEM and ODM projects.

6. Can Heymed Medical develop this cable from a drawing or existing sample?

Yes. Customers can provide device drawings, PCB or pinout definitions, existing cable samples, interface photos or reference products for engineering evaluation and prototype development.

7. What information is needed to start a custom USB-C electrode cable project?

Customers are recommended to provide the device model, USB-C pinout, electrode interface, required cable length, material requirements, reference drawing or sample, expected quantity and any project-specific testing requirements.
