Customizable 4.0mm banana plug cable for electrical testing, laboratory instruments, stimulation equipment, and compatible healthcare devices.

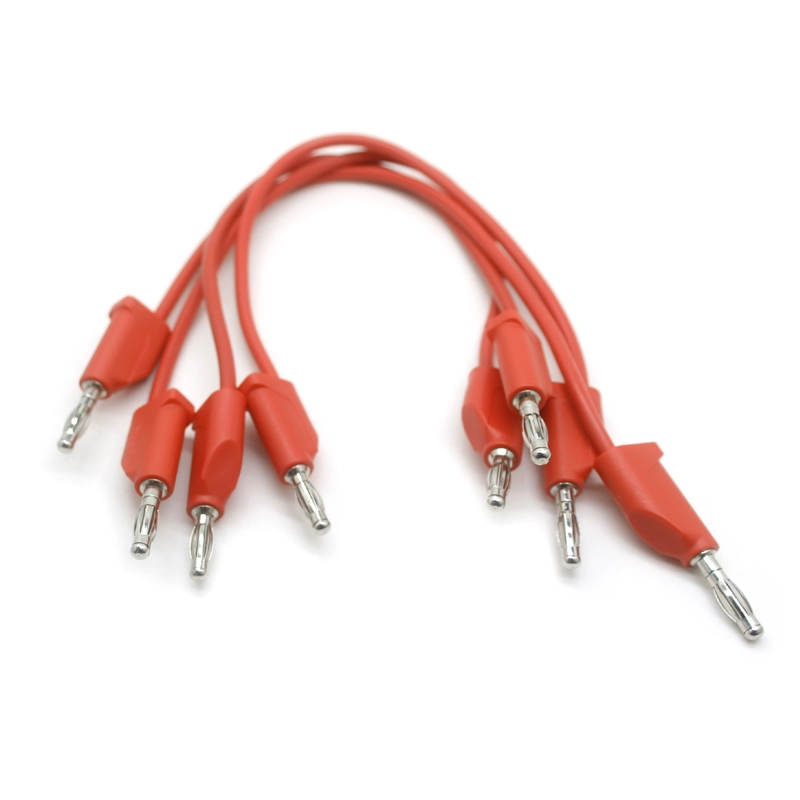

This 4.0mm banana plug test lead wire provides a configurable connection solution for electrical test equipment, laboratory instruments, stimulation systems, and compatible healthcare devices. It is available with copper or tinned-copper conductors, PVC insulation, multiple colors, and customized cable lengths.
Heymed Medical supports banana-to-banana, banana-to-clip, banana-to-electrode, and other project-specific connection configurations. Current, voltage, conductor size, insulation, and connector structure are confirmed according to the finished equipment requirements.
Solution & Applications
This 4.0mm banana plug lead wire provides a flexible connection option for electrical test instruments, laboratory equipment, power supplies, and compatible healthcare devices.
Connector configuration, conductor size, insulation material, cable length, color, and electrical rating can be selected according to the equipment interface and operating environment.
Heymed Medical supports custom overmolding, banana-to-banana cables, banana-to-clip assemblies, electrode connections, labeling, and private-label packaging for OEM/ODM projects.
Medical-grade auricular stimulation cable specifications for healthcare and neuromodulation therapy applications.

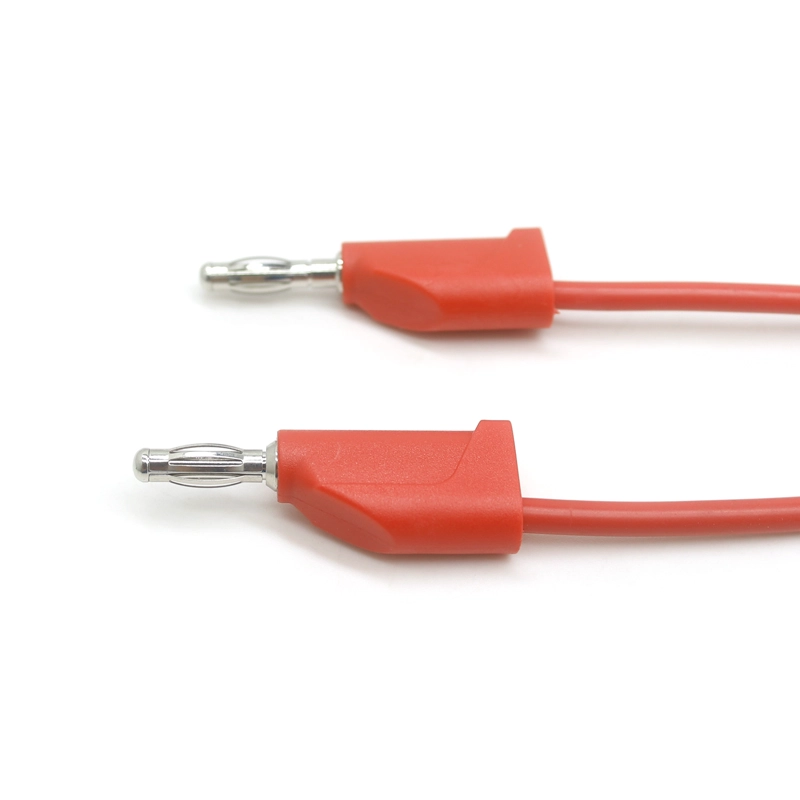

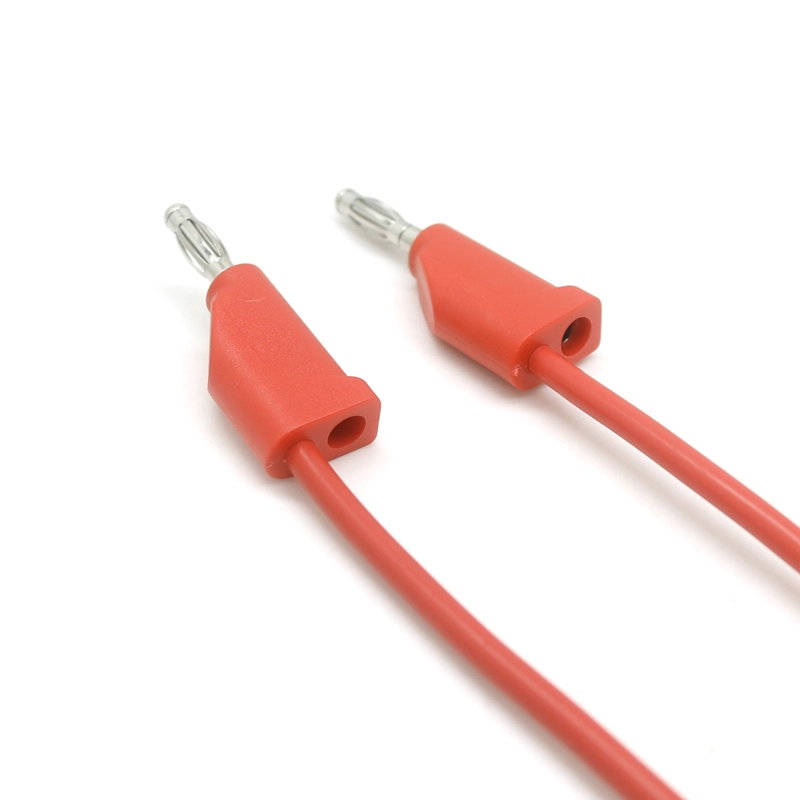

This 4.0mm banana plug test lead provides a configurable cable connection for electrical test instruments, laboratory equipment, power supplies, compatible stimulation systems and selected healthcare-device applications. The standard configuration uses 4.0mm banana plugs at both ends, while conductor material, cable length, insulation, color and connector combination can be developed according to the target equipment.
Heymed Medical supports both standard banana-to-banana assemblies and project-specific configurations such as banana-to-clip, banana-to-electrode or customized adapter cables. For OEM and ODM projects, the complete cable should be designed around the required current, voltage, connector fit, conductor size and operating environment rather than selected only by connector diameter.

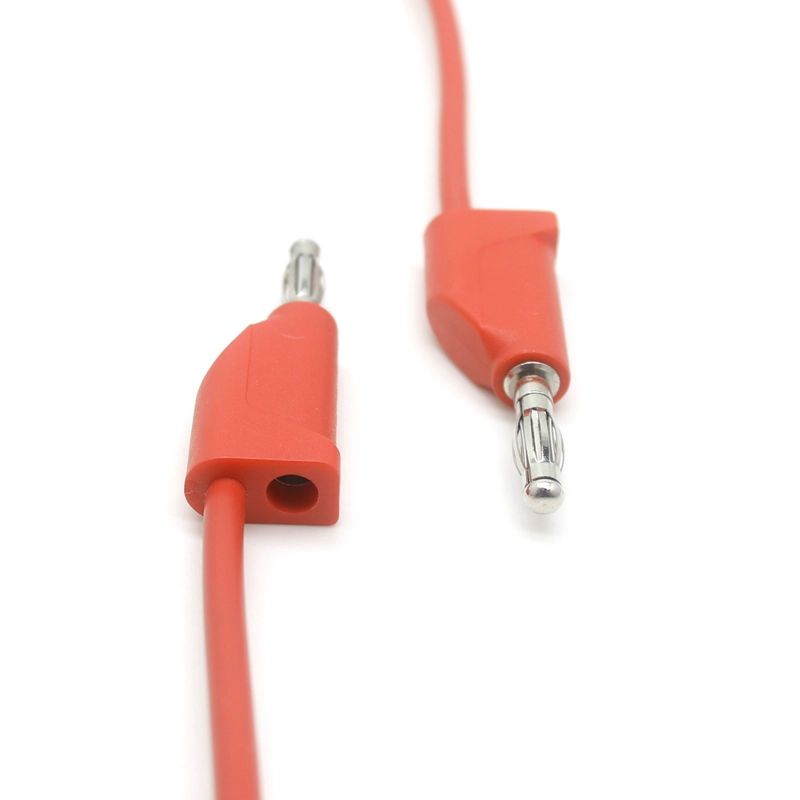

The 4.0mm banana plug is widely used as a detachable electrical connection in test instruments, laboratory hardware, power equipment and other systems using a matching 4.0mm socket. Its compact cylindrical contact structure allows cables to be connected and removed without permanently wiring the equipment interface.
Even when two devices both use a nominal 4.0mm interface, connector compatibility should still be checked against the actual socket geometry, insertion depth and mechanical construction. For custom equipment projects, a mating connector drawing or physical sample can be reviewed before cable production.
Connector housing shape, cable exit direction and overmolding can also be adapted where the finished equipment requires a more compact or application-specific connection structure.
The current and voltage capability of a banana plug cable cannot be determined from the connector alone. Conductor cross-section, conductor material, cable length, insulation thickness, connector contact structure, temperature rise and operating environment all affect the final electrical rating.
The standard product page provides reference values of up to 15A and up to 1000V, but these values are subject to the final cable design and validation. For OEM projects, the required operating current and voltage should therefore be defined before conductor size and insulation construction are finalized.
Where the cable will be incorporated into medical, laboratory or diagnostic equipment, the completed cable assembly should be evaluated according to the electrical, mechanical and compliance requirements of the finished device.
Connector configuration: banana-to-banana, banana-to-clip, banana-to-electrode or other project-specific combinations.
Electrical requirement: target voltage, operating current and expected load conditions should be defined before cable construction is selected.
Conductor: copper or tinned-copper conductor and cross-sectional area selected according to the required electrical performance.
Insulation: PVC or project-specific jacket materials can be evaluated according to flexibility, voltage and operating-environment requirements.
Cable dimensions: standard and customized lengths can be developed according to the equipment layout and required working distance.
Identification: red, black, yellow, blue, green and custom colors, labels and packaging can be configured for OEM projects.
For equipment manufacturers, the cable does not need to remain a fixed male-to-male banana lead. The opposite end can be developed around the actual device, accessory or electrode connection required by the project.
Heymed Medical can integrate banana plugs with clips, terminals, electrodes, custom connectors or other cable branches, allowing the assembly to function as part of a larger test, diagnostic or equipment interconnection system.
Projects requiring a more specialized interface can also be developed through our Medical Connectors & Adapters range.
Custom banana plug cable development can begin from a connector drawing, equipment interface, electrical specification, existing cable sample or target application. Our engineering team can review the connector combination, conductor size, cable length, insulation and overmold structure before preparing a prototype.
During sample verification, connector fit, pin-to-pin continuity, cable dimensions and applicable electrical performance can be checked against the approved project specification. Additional testing can be defined where the final equipment requires specific current, voltage, temperature-rise or mechanical-cycle requirements.
For projects requiring a complete cable or adapter rather than a standard test lead, explore our Custom Medical Cable Assemblies for additional connector, overmolding and equipment-integration options.
Equipment manufacturers may require different connector combinations depending on the electrical interface, application environment and mechanical architecture of the finished device.
Custom Medical Cable Assemblies →
Custom connector-to-connector, connector-to-terminal and equipment-specific cable assemblies developed from drawings, samples or interface requirements.
Medical Connectors & Adapters →
Connector components and adapter solutions for medical, diagnostic, laboratory and embedded equipment integration.
We provide OEM and ODM medical cable assembly services for neuromodulation therapy device manufacturers and healthcare brands worldwide.
Reusable neutral electrode plate with a stainless steel contact surface, TPU insulated frame and customizable device-side cable termination for compatible electrosurgical units.
Self-reset nurse call push button cable with a 5-pin spring-loaded contact interface for compatible hospital beds, nurse stations and healthcare communication systems | OEM/ODM customization available
Shielded 5-lead electrode cable with a 6-pin push-pull device connector and five 3.5mm female snap interfaces for compatible TENS, EMS and physiotherapy equipment.
Soft reusable silicone ear clip electrode for compatible tVNS, taVNS and auricular stimulation devices | Custom connector, cable length and OEM/ODM options available
A 1.2m spring-loaded ear clip electrode cable with PE contact pads for compatible tVNS, taVNS, TENS, CES, and microcurrent devices.
Single-use adult patient return electrode for compatible monopolar electrosurgical units | Cable, connector, pad structure and OEM/ODM options available
Compact rechargeable taVNS / tVNS stimulation device for compatible ear electrodes | LED status indication, USB charging and OEM/ODM development available
Reusable dual ear-clip electrode assembly with silver/silver chloride contact surfaces for compatible taVNS, CES, TENS and microcurrent devices.
Resolve your concerns in advance — stress-free communication, efficient coordination
A 4.0mm banana plug test lead wire is a removable electrical connection cable commonly used to connect test instruments, laboratory equipment, power supplies, compatible medical devices, electrodes, clips, and other accessories using a 4.0mm banana interface.
It can be used with compatible test instruments, laboratory equipment, diagnostic devices, power supplies, electrode systems, and other equipment using a 4.0mm banana socket. Final compatibility depends on the connector dimensions and electrical requirements of the device.
Yes. Heymed Medical can customize configurations such as 4.0mm banana plug to banana plug, test clip, electrode connector, or other project-specific connectors.
Yes. Cable length, color, conductor size, insulation material, jacket material, connector structure, labeling, and packaging can be customized according to OEM and ODM requirements.
Yes, it can be developed as a connection component for compatible medical and diagnostic equipment. Connector compatibility, electrical specifications, materials, and final device requirements should be evaluated before use.
Customers can provide the connector configuration, cable length, wire specification, device interface drawing, electrical requirements, sample, photos, and expected order quantity for engineering evaluation.
Yes. Heymed Medical supports connector selection, cable structure design, material selection, sample development, testing, overmolding, labeling, packaging, and volume production for custom banana plug cable assemblies.
Yes. Custom cable assemblies can be developed based on device drawings, connector specifications, existing cable samples, photos, or application requirements.
